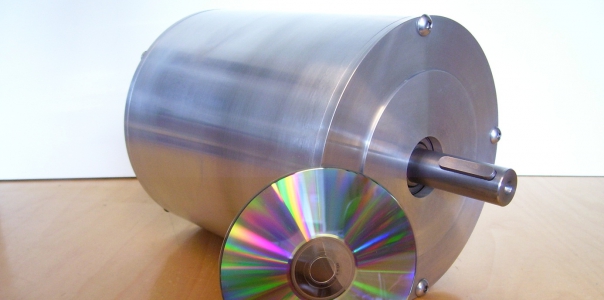

High Speed Asynchronous Motor

This water cooled motor is developed by InnoSys Delft BV under project HTAS. It is intended for compact high power generator sets for hooking up as a small trailer behind electric vehicles for range extension and it is suited for driving up to mid sized electric vehicles. Peak power is 100kW (depending on used motor drive) and it can be wound for several system voltages.

Some characteristics:

Size 1:

- Weight            = 31 [kgs]

- LxDia               = 285 x 200 [mm]

- Shaft               = on request

- System voltage  = 148VDC min - 800VDC max

- Nominal speed   = 7800 [rpm]

- Nominal Power   = 32kW

- Peak power       = 60-100 [kW] (depending on motor drive)

- Coolant             = Glycol



Size 2:

- Weight            = 50 [kgs]

- LxDia               = 330 x 250 [mm]

- Shaft               = on request

- System voltage  = 400VDC min - 800VDC max

- Nominal speed   = 6500 [rpm]

- Nominal Power   = 50kW

- Peak power       = 150-200 [kW] (depending on motor drive)

- Coolant             = Glycol
